OE:OEM:0446525040; - Brake Pad Set

Part Search

Vehicle Search

Product List

Part Information

Name:

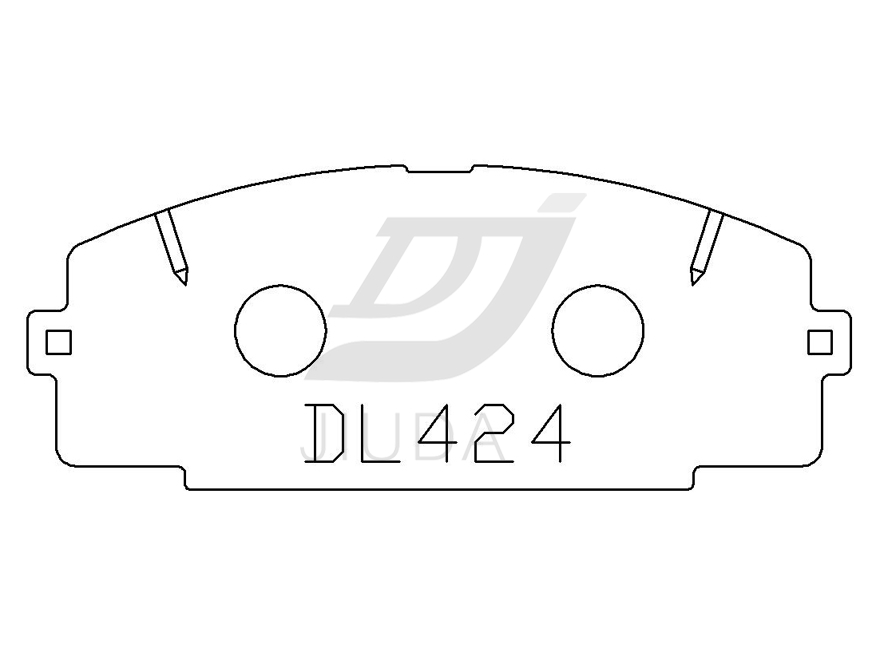

Part No.: DL424

Remark:

Length (mm):145.4

Thickness (mm):6

Width (mm):56.9

OEM Number

OEM 0446525040

Reference Number

FMSI-VERBAND D2104

FMSI-VERBAND D1344

TRW GDB770

TRW GDB3059

WVA 21468

WVA 24158

WVA 24159

WVA 24160

FERODO FDB554

Applications

Model	Engine	Displacement	Power	Hp	Type	Year
TOYOTA_HIACE III Wagon (H50)						198908-199508
2.4 4WD	2RZ-E	2438	88	120		198908-199508
2.4 D 4WD	2L	2446	55	75		198908-199508
3.0 D	5L	2986	65	88		199808-200412
2.5 D-4D 4x4	2KD-FTV	2494	75	102		200108-200608
2.4	2RZ-E	2438	85	116		199611-200609
TOYOTA_HIACE IV Wagon						199508-200608
2.4 D	2L	2446	58	79
2.4 TD (LXH12_, LXH22_)	2L-T	2446	66	90
2.4 (RCH12_, RCH22_)	2RZ-E	2438	85	115		199508-199804
2.4 4WD (RCH18_)	2RZ-E	2438	85	116		199508-199804
2.7 (RCH13_, RCH23_)	3RZ-FE	2694	105	143		199804-200111
2.4 TD 4WD (H18/28)	2L-T	2446	66	90
2.7 4WD (RCH19_)	3RZ-FE	2694	105	143
2.4 D	2L	2446	55	75
2.5 D-4D	2KD-FTV	2494	65	88
2.5 D-4D	2KD-FTV	2494	75	102
2.7	3RZ-FE	2694	106	144
2.5 D-4D	2KD-FTV	2494	70	95
2.5 D-4D	2KD-FTV	2494	86	117
2.5 D-4D 4x4	2KD-FTV	2494	86	117
2.5 D-4D 4WD	2KD-FTV	2494	75	102
2.7 4WD	3RZ-FE	2694	106	144
TOYOTA_HIACE II Box (H20)						198303-198911
2.4 D	2L	2446	55	75		198405-198911
2.0	3Y	1998	65	88		198401-198911
2.4 D 4x4	2L	2446	55	75		198404-198707
2.2 (YN6_)	4Y	2237	69	94		198709-198908
2.2 4x4	4Y	2237	69	94		198709-198908
TOYOTA_HIACE III Box (H50)						198908-199508
2.4 4WD	2RZ-E	2438	88	120		198908-199508
2.4 D 4WD	2L	2446	55	75		198908-199508
3.0 D	5L	2986	65	88
2.4 D 4x4	2L	2446	57	78		198909-199508
2.5 D-4D 4x4	2KD-FTV	2494	65	88		200108-200608
TOYOTA_HIACE II Wagon (H20)						198303-198911
2.0 (H5G)	3Y	1998	65	88		198501-198908
2.4 D (H5G)	2L	2446	55	75		198408-198908
2.4 D 4WD (H5F)	2L	2446	54	73		198701-198801
2.2	4Y	2237	69	94		198709-198908
TOYOTA_HIACE IV Box
2.4 (RCH12_, RCH22_)	2RZ-E	2438	85	116		199508-199804
2.4 D (LXH12_, LXH22_)	2L	2446	58	79
2.4 TD (LXH12_, LXH22_)	2L-T	2446	66	90
2.4 4WD (RCH18_, RCH28_)	2RZ-E	2438	85	116		199508-199804
2.7 (RCH13_, RCH23_)	3RZ-FE	2694	105	143
2.4 TD 4WD (LXH18_, LXH28_)	2L-T	2446	66	90
2.7 4WD (RCH19_, RCH29_)	3RZ-FE	2694	105	143
2.5 D-4D	2KD-FTV	2494	65	88
2.5 D-4D	2KD-FTV	2494	75	102
2.5 D-4D 4WD	2KD-FTV	2494	75	102
2.4 D	2L	2446	55	75		199509-200108
2.5 D-4D	2KD-FTV	2494	86	117
2.5 D-4D 4x4	2KD-FTV	2494	86	117
2.5 D-4D	2KD-FTV	2494	70	95
2.4 i (RZH10)	2RZ-E	2438	88	120
TOYOTA_DYNA Platform/Chassis						197708-198708
2.4 D	2J	2449	55	75		198409-198708
TOYOTA_DYNA Platform/Chassis (KD_, _U7_, _C6_, _U6_, LY_, TRY2_, KD
2.5 D4d	2KD-FTV	2494	65	88
2.5 D4d	2KD-FTV	2494	75	102
3.0 D4d	5L	2986	65	88
3.0 D4d	1KD-FTV	2982	80	109
3.0 D4d	1KD-FTV	2982	106	144
3.0 D4d	1KD-FTV	2982	100	136
TOYOTA_GRANVIA						199107-199808
3.4	5VZ-FE	3378	140	190		199107-199808
TOYOTA_DYNA 100 Platform/Chassis (YH_)						198508-199504
1.8	2Y	1812	58	79		198508-199504
TOYOTA_HIACE V Box (H20_)
2.5 D-4D	2KD-FTV	2494	70	95
2.5 D-4D	2KD-FTV	2494	86	117
TOYOTA DYNA Platform/Chassis (LH8_)						198708-199504
2.4 D	2L	2446	61	83		198708-199504
FOTON_MPX MPV
2.4	4 G 64	2350	93	125
JINBEI (BRILLIANCE)_HAISE II Bus
2.2	491QME	2237	76	103
2.4	4G24	2438	90	122
2.4	4 G 64 (12 V)	2350	96	131
JINBEI (BRILLIANCE)_GRANSE III
2.4	4RB2	2438	102	139
JINBEI (BRILLIANCE)_GRANSE MPV
2.0	4G20D4L	1977	92	125
2.4	4RB2	2438	102	139
